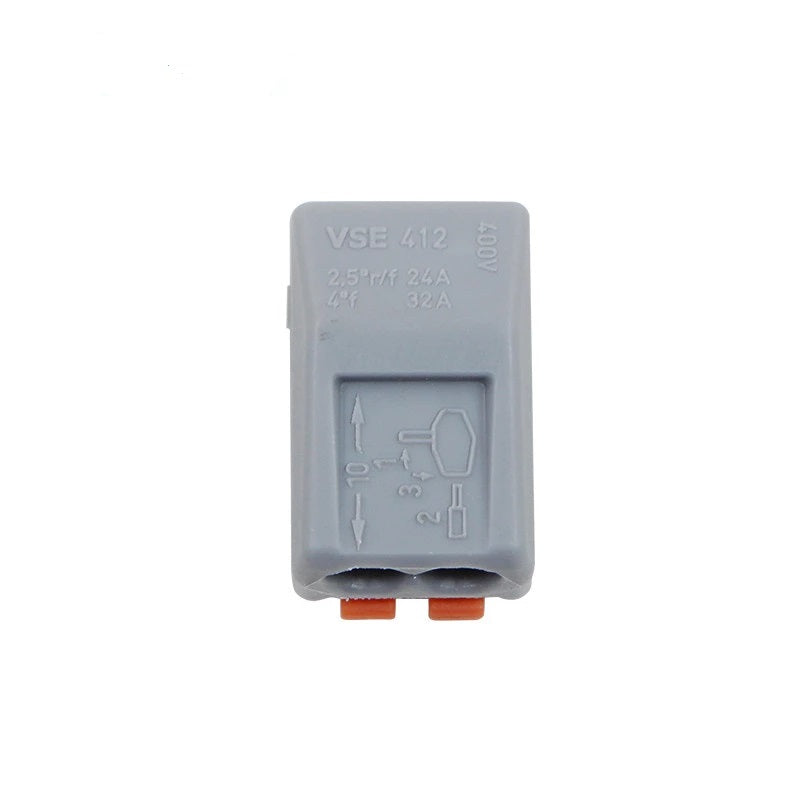

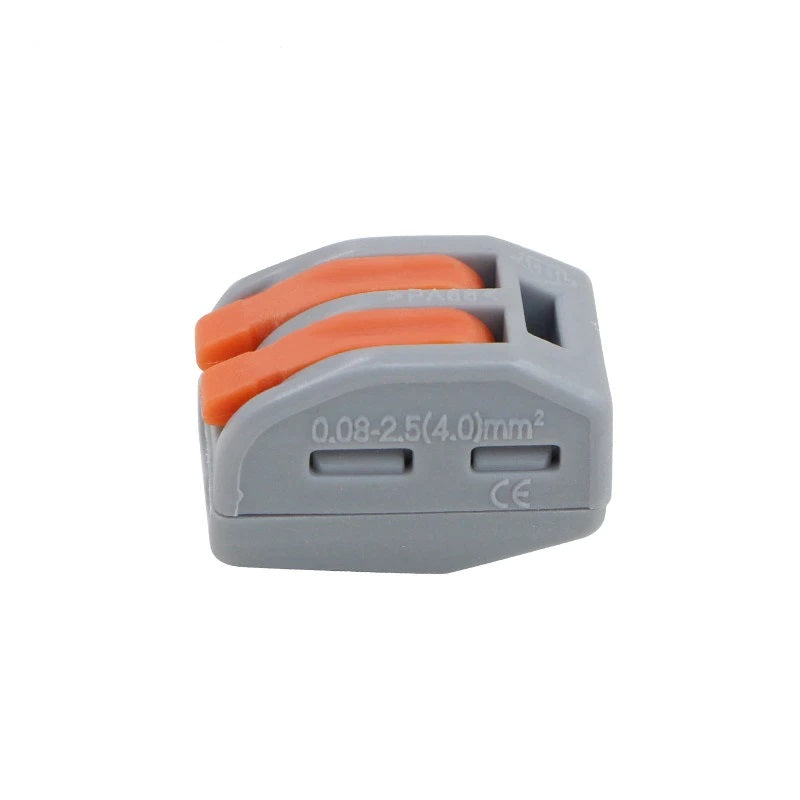

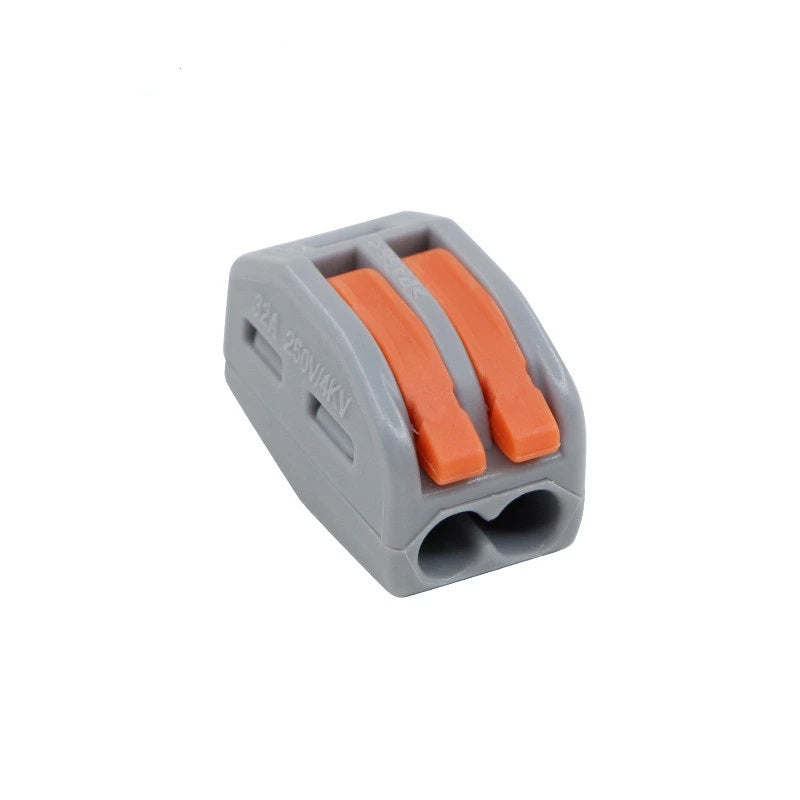

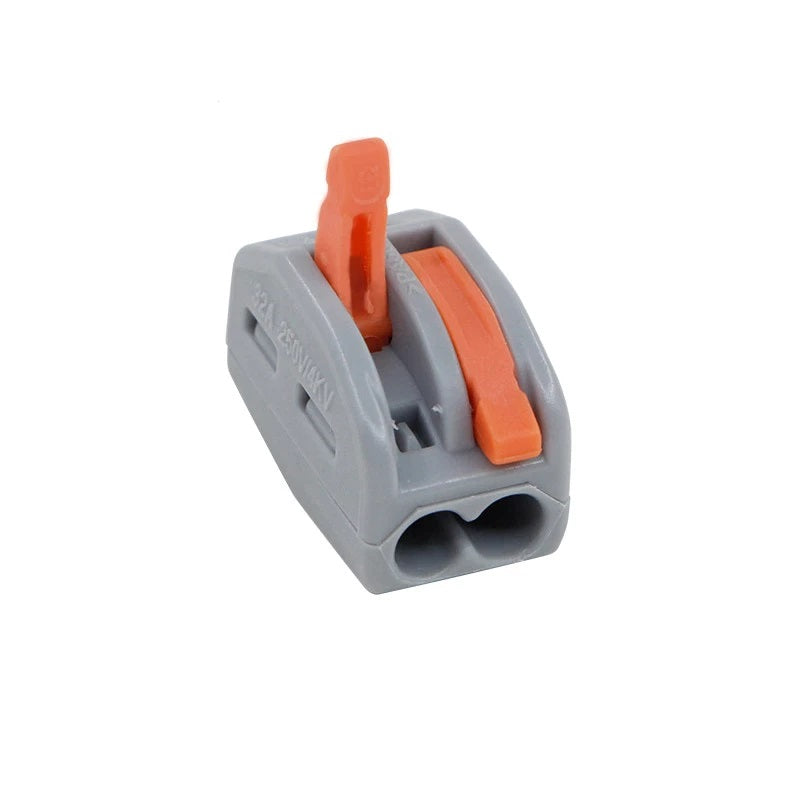

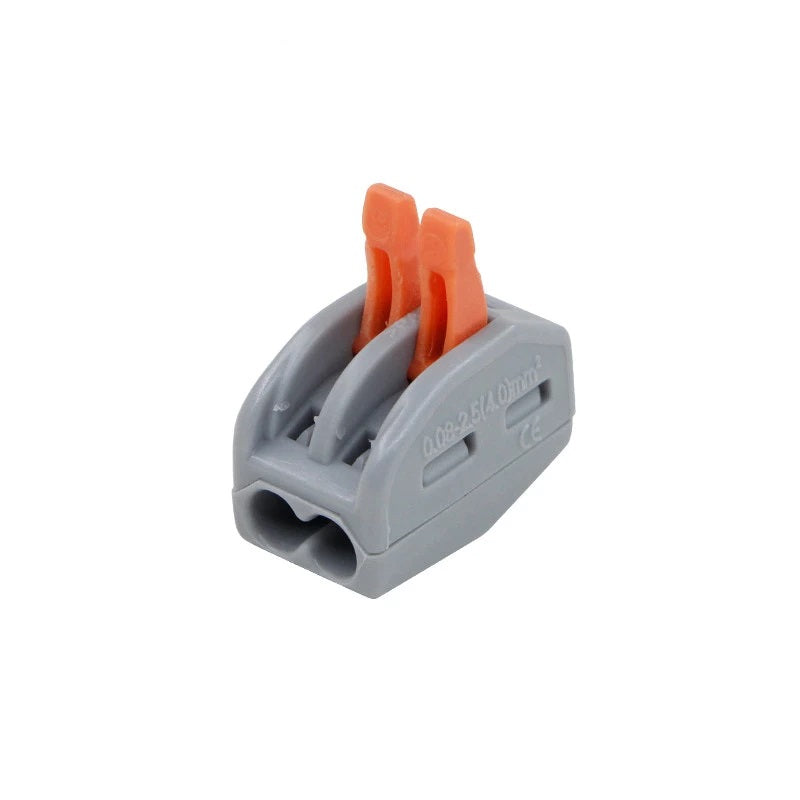

Wago 2 Wire Connectors
$0.65
Pickup currently unavailable
The 222 series compact splicing connectors make the connecting easy, save time and money in distribution boxes or junction boxes.
Connect any combination of solid, stranded, and flexible copper wires faster and more reliably.
Made of the best high quality PC or PA66 insulating material.
Reusable connector.
Don't need any tools to connect wires
|
Length/Height/Wide (mm) |
L20.5/W12.4/H14.5 |
|
Connection method |
Cage Clamp |
|
Material |
Flame resistant Nylon PA66, also available in PC material |
|
Rated Voltage/Current |
400V/32A |
|
Cross section, solid Cable/Conductor Size |
0.08-2.5 mm² /28-12 AWG |
|
Cross section, soft Cable/Conductor Size |
0.08-4 mm² |
|
Mounting Carrier |
222-500, 222-505 |
|
Standard |
IEC 60947-7-1 |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
