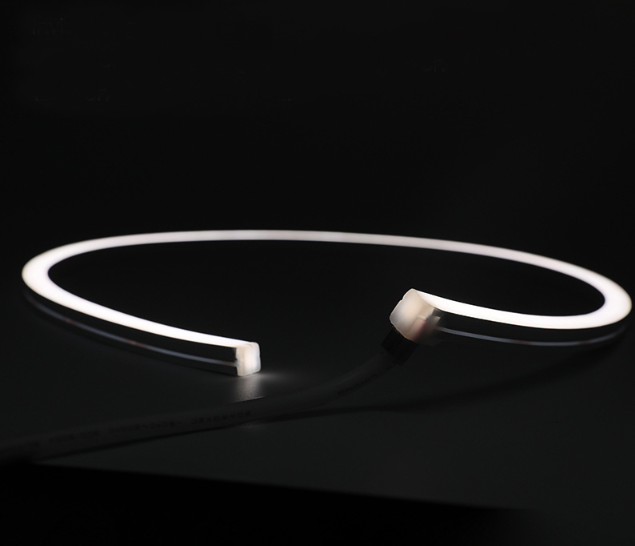

25m Long Run 10X10mm Neon Flex IP67 48V
25m Long Run 10X10mm Neon Flex IP67 48V
Couldn't load pickup availability
Key Benefits
- Run up to 25m from one end, 50m with dual feed
- Seamless, dot-free neon effect with no visible joints
- IP67 waterproof – built for outdoor environments
- Flexible horizontal bending for custom shapes
- Durable silicone construction – no yellowing or cracking
Ideal For
- Architectural and façade lighting
- Outdoor and landscape applications
- Signage and feature lighting
- Retail, hospitality, and large-scale installs
Product Description
Seamless Neon Lighting for Long-Run Installations
The 48V Ultra Long Neon Flex is engineered for large-scale lighting projects where consistency and durability are critical. With the ability to run up to 25 metres from a single power feed (or 50 metres with dual feed), it eliminates voltage drop and delivers uniform brightness across the entire length.
Perfect for architectural outlines, façades, and feature lighting, it provides a clean, continuous neon effect without visible joints or hotspots.

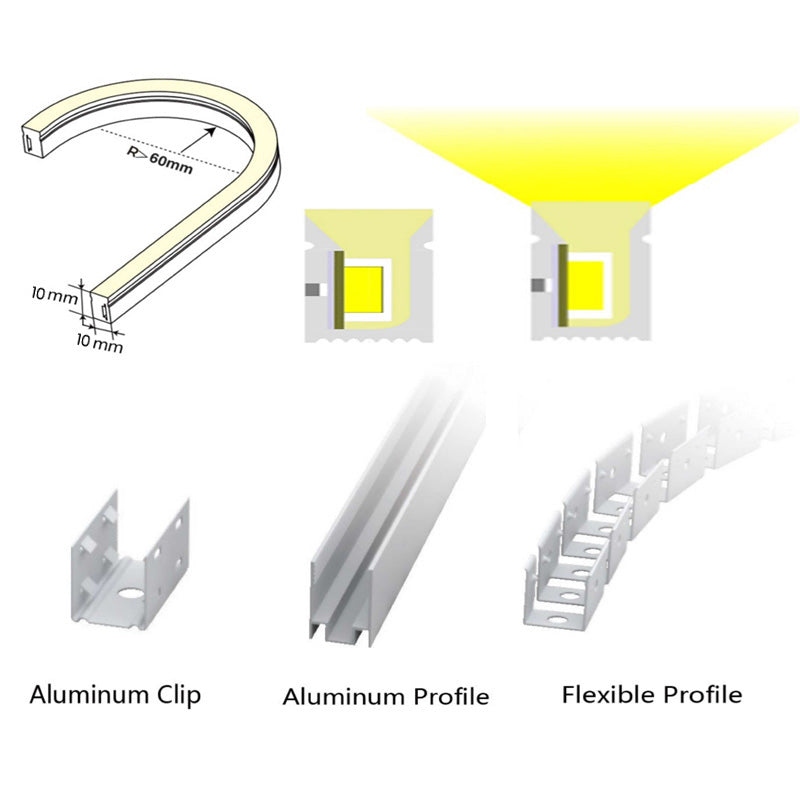

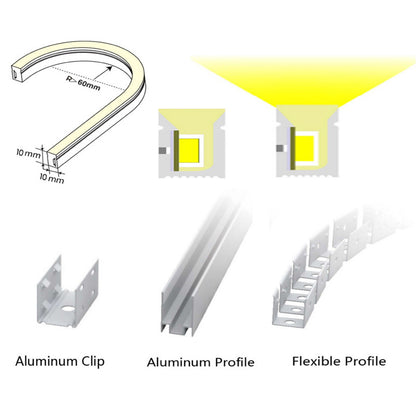

Top-view Bending direction
Premium Materials
Encased in premium vapor-phase silicone, this IP67-rated neon flex is built for long-term durability in both indoor and outdoor environments, resisting yellowing and environmental wear.
Product Specification
| Specification | Details |
|---|---|
| Product Type | 10×10mm Flexible Injection Moulded Neon LED |
| LED Chip | SMD2835 (dimmable) |
| LED Quantity | 120 LEDs/m |
| Lighting Direction | Side Emitting |
| Beam Angle | 120° |
| Light Colours | 1800K, 2300K, 2700K, 3000K, 4000K, 5000K, 6000K, 7500K |
| Input Voltage | 48V DC |
| Length Options | 5m, 10m, 15m, 20m, 25m, 30m, 40m, 50m |
| Max Run Length | 25m single feed / 50m dual feed |
| Power Consumption | 12W/m (≤20m), 8W/m (≥25m runs) |
| Power per Length | 5m: 60W · 10m: 120W · 15m: 180W · 20m: 240W · 25m: 200W · 30m: 240W · 40m: 320W · 50m: 400W |
| Lumen Output | 24–26 lm per LED |
| Material | Vapor-phase silicone (gas-phase silica gel) |
| Waterproof Rating | IP67 |
| CRI | 90+ |
| Lifespan | 50,000+ hours |
| Cut Interval | 50mm |
Notes
- Compatible with 48V dimming controllers (e.g. V1-K) for brightness control
- Clips and mounting accessories sold separately
- Available with factory-sealed end caps: bottom exit, side exit, or straight exit
- Top View Bending Direction
This is a customised product - 4 week lead times apply
