20m Long Run Addressable RGB DMX LED Strip 48v

Key Benefits

• Run up to 20m from a single power feed

• DMX512 addressable (pixel control) – no decoder required

• No voltage drop – consistent output across full length

• 10 pixels per metre (1 IC per 12 LEDs)

• High efficiency at 11W/m for large-scale installs

Ideal For

• DMX programmable lighting installations

• Architectural façades and feature lighting

• Entertainment, stage, and event lighting

• Large-scale dynamic lighting projects

Product Description

Pixel-Controlled Lighting for Long-Run Installations

This 48V DMX RGB LED strip is designed for programmable lighting projects that require precise control over long distances. Each segment is individually addressable, allowing dynamic lighting effects, colour chasing, and complex animations across the entire installation.

With 10 pixels per metre, it delivers detailed control while maintaining efficient performance for large-scale applications.

Eliminate Voltage Drop Over Long Distances

Traditional pixel LED strips struggle with voltage drop, requiring frequent power injection and complex wiring. This 48V system solves that problem, enabling continuous runs of up to 20 metres from a single power feed.

The result is consistent brightness and colour across the full length, with fewer connection points and a cleaner installation.

Built for Scalable DMX Systems

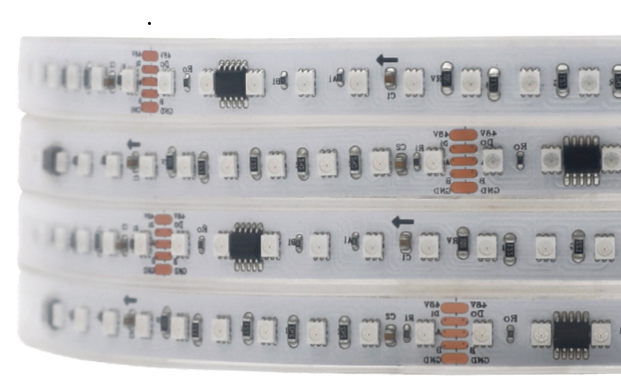

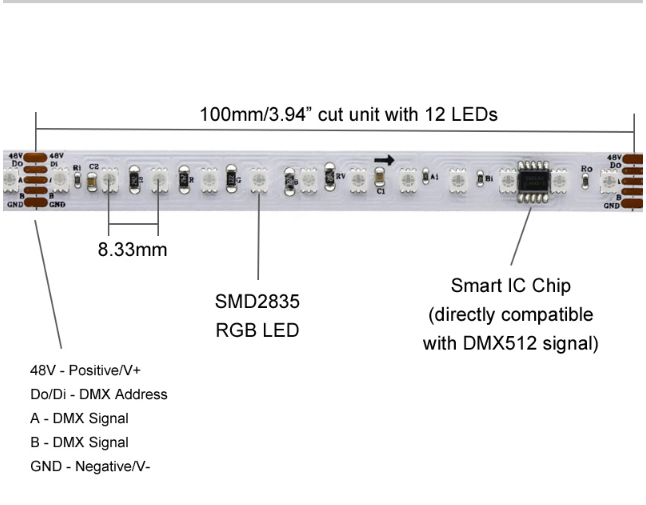

Designed for direct DMX512 compatibility, this strip integrates seamlessly into professional lighting systems. Each integrated circuit controls 12 LEDs, providing stable signal transmission and reliable pixel mapping over extended runs.

Efficient, High-Density Output

Using SMD2835 LEDs at 120 LEDs per metre, this strip delivers smooth ambient lighting with low power consumption of just 11W per metre. It’s an efficient solution for large installations where both performance and energy use matter.

Product Specifications
