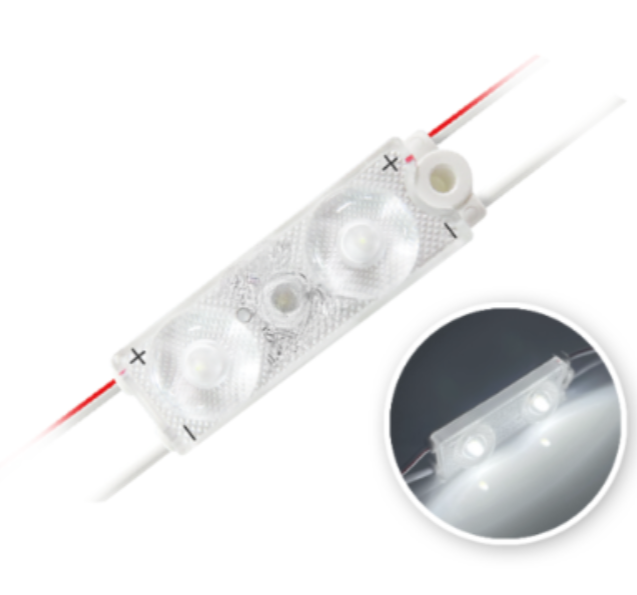

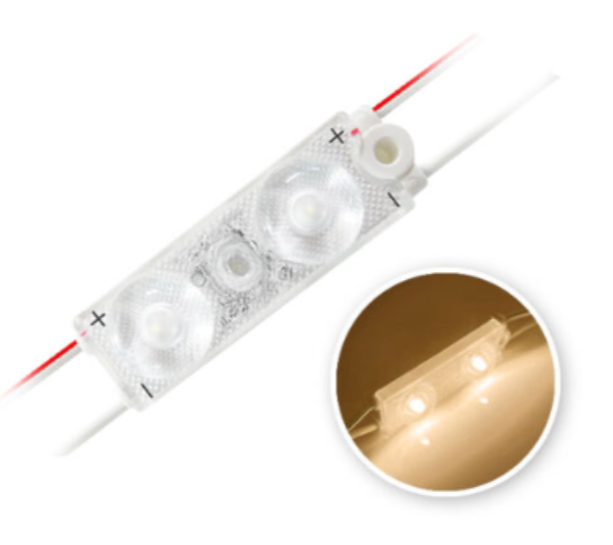

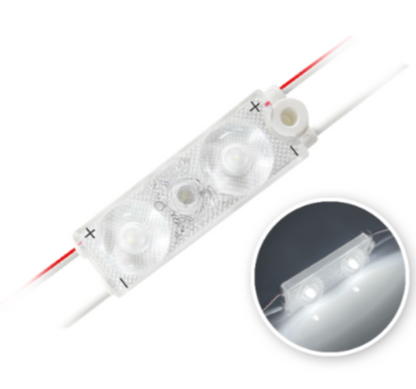

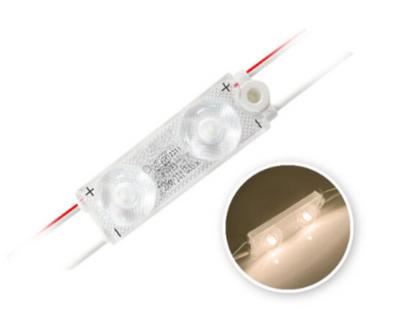

MODULE 2 LED Signage Module 24V IP67 – 50 Module/Pack

High-efficiency LED modules designed for channel letters, light boxes, and illuminated signage requiring reliable brightness, wide light distribution, and long service life.

Key Benefits

• High efficiency output delivers bright signage illumination while reducing power consumption
• 175° wide beam angle creates more uniform light coverage and minimises hotspots
• IP67 protection suitable for demanding indoor and outdoor installations
• 24V constant current design provides stable performance and consistent brightness
• 10-year warranty supports long-term commercial signage projects
• Compact module format simplifies installation in channel letters and light boxes

Ideal For

• Channel letters
• Illuminated shopfront signage
• Light boxes
• Commercial displays
• Architectural signage
• Retail branding installations
• Outdoor advertising signs

Technical Summary

• Item Code: SA 2292-A
• Pack Quantity: 50 Modules
• Power: 0.48W per module
• Voltage: DC 24V
• Current: 0.02A
• Luminous Flux: 81lm
• Efficiency: 170lm/W
• Colour Temperature: 6500K 4000K 3000K
• CRI: 70
• Beam Angle: 175°
• IP Rating: IP67
• Dimmable: Yes
• DALI: Non-DALI Compatible
• Max Series Connection: 50 Modules
• Working Temperature: -25°C to 60°C
• Warranty: 10 Years
