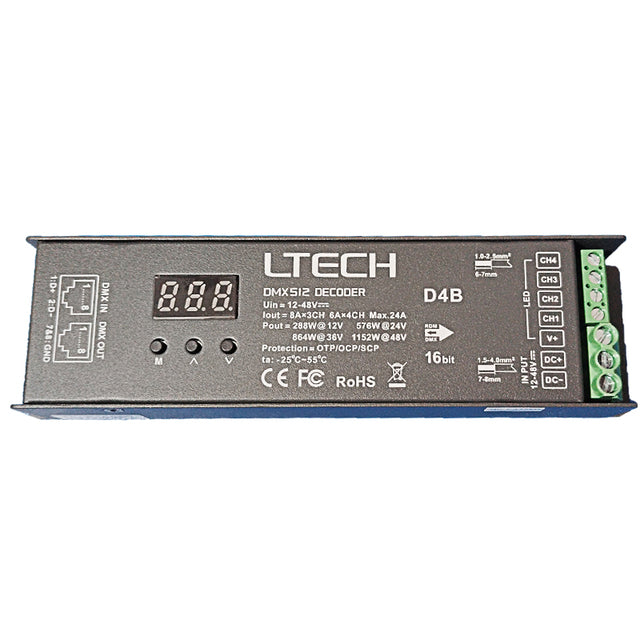

LTECH DMX512 4CH Decoder 12V-24V 5A

***COMPATIBLE WITH LTECH ACCESSORIES ONLY

• Standard DMX/RDM interfaces; Set addresses via the digital display and buttons
• RDM protocol; Browse parameters and change DMX addresses via a RDM master
  or via the mobile APP
• DMX mode and customized mode can be switched
• PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/14400/18000Hz
• 16bit (65536 levels)/8bit (256 levels) gray scale optional
• Linear and logarithmic dimming curve optional
• DIM/CT/RGB/RGBW mode optional [ 1/2/3/4 DMX channel output).
  Provides 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels.
  Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity, Short circuit, over-temperature, over-current protection and auto recovery.

D4A has green terminal DMX interfaces, D4B has RJ45 DMX interfaces.
