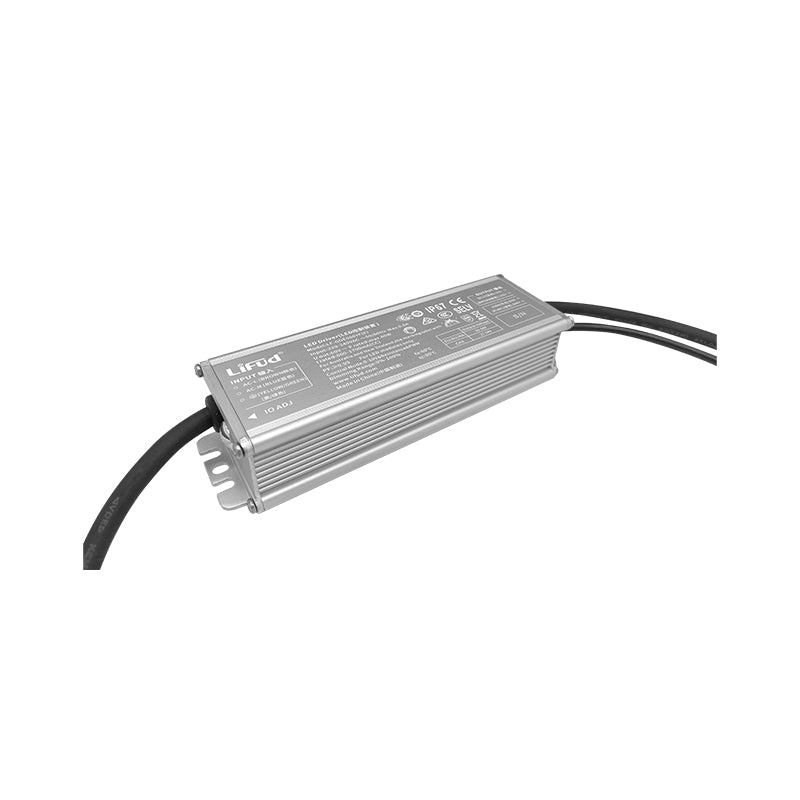

LIFUD 250W AUP IP67 CV 24vDC 10.41A Adjustable LED DRIVER

Powerful 250W constant-voltage LED driver designed to provide reliable 24V DC power for large LED lighting systems, signage and architectural applications. Its IP67-rated metal enclosure makes it suitable for demanding indoor and outdoor installations, while the adjustable output allows fine-tuning between 22V and 26V DC

Key Features

• 250W high-power output
• Stable 24V DC constant-voltage output
• 10.4A output current
• Adjustable output from 22–26V DC
• IP67 weatherproof protection
• Flicker-free operation
• High efficiency
• Wide 100–277V AC input range
• Metal enclosed housing
• Built-in electrical protection
• Suitable for indoor and outdoor applications
• 5-year manufacturer warranty

Ideal Applications

• Large LED strip installations
• Architectural lighting
• Commercial lighting
• Outdoor LED signage
• Decorative lighting
• 24V LED systems
• Large-scale custom lighting projects

Technical Summary

• Brand: Lifud
• Model: LF-GOE250YV024A
• Output Type: Constant Voltage
• Output Voltage: 24V DC
• Output Current: 10.4A
• Output Power: 250W
• Input Voltage: 100–277V AC (max. 305V AC)
• Output Voltage Adjustment: 22–26V DC (92–108%)
• Efficiency: ≥92.5% at 230V AC full load
• Power Factor: ≥0.95 at 230V AC full load
• Flicker: ≤0.5%
• IP Rating: IP67
• Dimmable: No
• Cooling: Fanless
• Operating Temperature: -40°C to +60°C
• Dimensions: 227.4 × 63 × 34mm
• Input Connection: Mains plug & flex
• Output Connection: 250mm sheathed cable
• Housing: Metal enclosed
• Protection: Over-voltage, over-current, short circuit and surge protection
• Surge Protection: 6kV line-to-line / 8kV line-to-ground
• Warranty: 5 years
