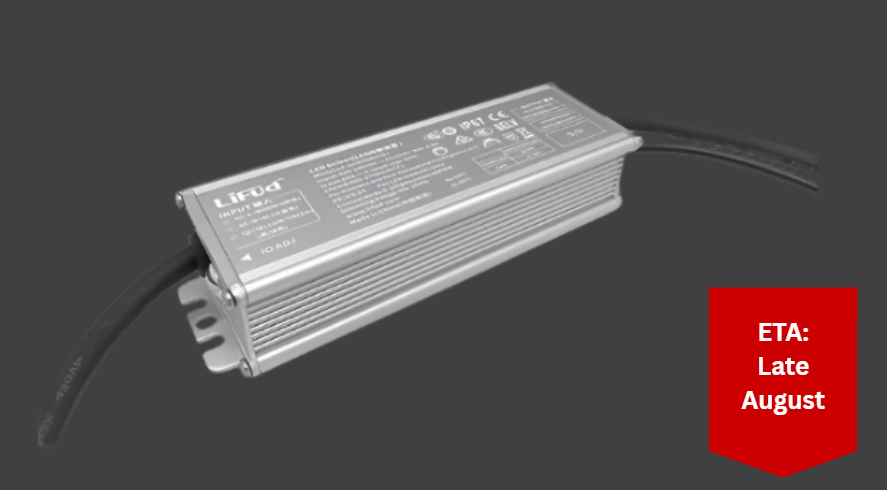

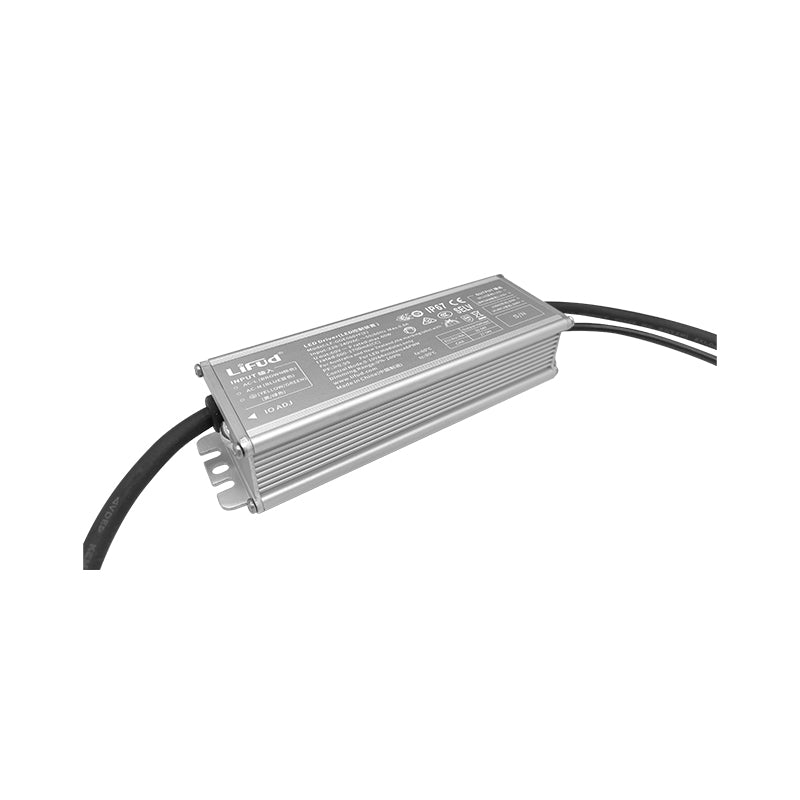

LIFUD 100W AUP IP67 CV 12vDC 8.33A Adjustable LED DRIVER

Compact 100W constant-voltage LED driver delivering reliable 12V DC power for LED strip lighting, signage and other low-voltage lighting systems. Its IP67-rated metal enclosure makes it suitable for indoor and outdoor applications, with adjustable output voltage for fine-tuning your installation.

Key Features

• 100W output power
• 12V DC constant-voltage output
• 8.34A output current
• Adjustable 11.04–12.96V DC output
• IP67 protection
• Flicker-free operation
• High efficiency
• Wide 100–277V AC input range
• Compact metal-enclosed design
• Fanless cooling
• Built-in electrical protection
• 5-year warranty

Ideal Applications

• 12V LED strip lighting
• LED signage
• Outdoor and garden lighting
• Commercial lighting
• Residential lighting
• Architectural lighting
• Other 12V constant-voltage LED systems

Technical Summary

• Brand: Lifud
• Model: LF-GOE100YV012A
• Output Type: Constant Voltage
• Output Voltage: 12V DC
• Output Current: 8.34A
• Output Power: 100W
• Input Voltage: 100–277V AC (max. 305V AC)
• Input Current: 1.0A max.
• Output Voltage Adjustment: 11.04–12.96V DC (92–108%)
• Efficiency: ≥87% at 230V AC full load
• Power Factor: ≥0.95
• Flicker: ≤1%
• IP Rating: IP67
• Dimmable: No
• Cooling: Fanless
• Operating Temperature: -40°C to +60°C
• Dimensions: 169.4 × 61 × 34mm
• Housing: Metal enclosed
• Input Connection: Mains plug & flex
• Output Connection: 250mm sheathed cable
• Protection: Over-voltage, over-current, short circuit and surge protection
• Surge Protection: 6kV L-N / 8kV L/N-GND
• Warranty: 5 years
