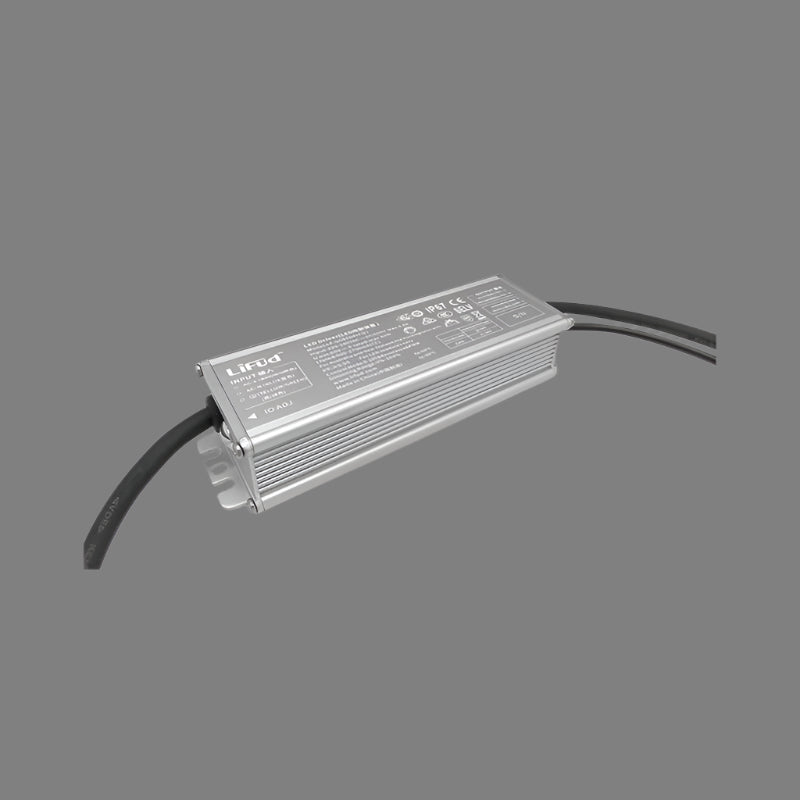

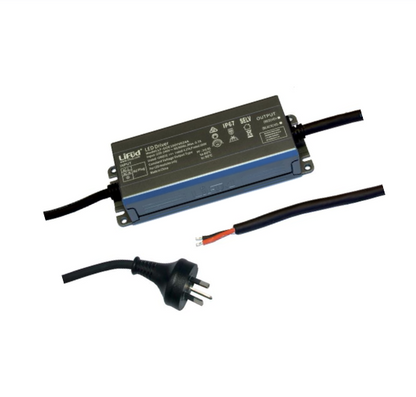

LIFUD 200W AUP IP67 CV 24vDC 8.33A Adjustable LED DRIVER

High-power 200W constant-voltage LED driver designed to provide reliable 24V DC power for larger LED strip lighting, signage and architectural lighting installations. Its IP67-rated metal enclosure makes it suitable for demanding indoor and outdoor applications

Key Features

• 200W output power
• 24V DC constant-voltage output
• 8.34A maximum output current
• Adjustable 22–26V DC output
• IP67 protection
• Flicker-free operation
• High efficiency
• Wide 100–277V AC input range
• Metal enclosed housing
• Fanless cooling
• Built-in electrical protection
• 5-year warranty

Ideal Applications

• 24V LED strip lighting
• Large LED installations
• Architectural lighting
• Commercial lighting
• Outdoor lighting
• LED signage and displays
• Industrial lighting

Technical Summary

• Brand: Lifud
• Model: LF-GOE200YV024A
• Output Type: Constant Voltage
• Output Voltage: 24V DC
• Output Current: 8.34A max. at 200–277V AC
• Output Power: 200W max. at 200–277V AC
• Input Voltage: 100–277V AC
• Output Voltage Adjustment: 22–26V DC (92–108%)
• Efficiency: ≥92% at 230V AC full load
• Power Factor: ≥0.95 at 230V AC full load
• Flicker: ≤0.5%
• THD: ≤15%
• IP Rating: IP67
• Dimmable: No
• Cooling: Fanless
• Operating Temperature: -40°C to +60°C
• Dimensions: 227.4 × 63 × 34mm
• Input Connection: Mains plug & flex
• Output Connection: 250mm sheathed cable
• Housing: Metal enclosed
• Protection: Over-voltage, over-current, short circuit and surge protection
• Surge Protection: 6kV line-to-line / 8kV line-to-ground
• Warranty: 5 years
• SKU: LF-GOE200YV024A
