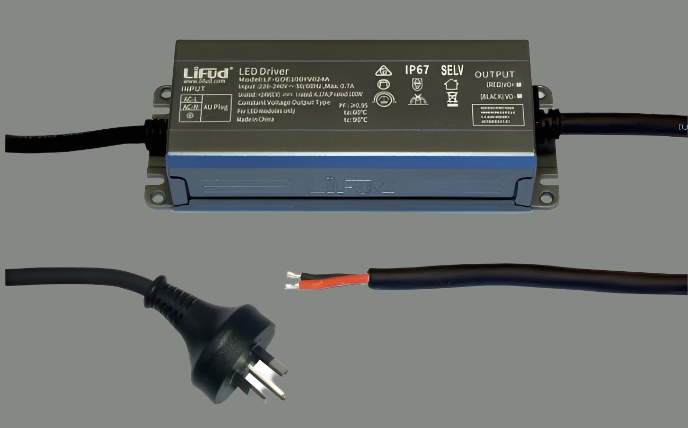

LIFUD 100W AUP IP67 CV 24vDC 4.16A Adjustable LED DRIVER

Power your 24V LED lighting with a reliable, weather-resistant Lifud constant-voltage LED driver. With 100W of output, IP67 protection and adjustable 22–26V DC output, it’s a great choice for LED strip lighting, signage and other indoor or outdoor 24V lighting applications

Key Features

• 100W output power
• 24V DC constant-voltage output
• 4.17A output current
• Adjustable output voltage: 22–26V DC
• IP67 weatherproof protection
• High efficiency: ≥90% at 230V AC full load
• Flicker-free operation
• Power factor ≥0.95
• Wide input range: 100–277V AC
• Built-in short-circuit, over-current, over-voltage and over-temperature protection
• 6kV line-to-line / 8kV line-to-ground surge protection
• Metal enclosed housing
• Fanless design
• 5-year manufacturer warranty

Ideal For

• 24V LED strip lighting
• LED signage
• Architectural lighting
• Commercial lighting
• Outdoor LED lighting
• Residential LED installations
• Other 24V constant-voltage LED systems

Technical Summary

• Brand: Lifud
• Model: LF-GOE100YV024A
• Output Voltage: 24V DC
• Output Power: 100W
• Output Current: 4.17A
• Input Voltage: 100–277V AC
• Output Adjustment: 22–26V DC
• Efficiency: ≥90%
• Power Factor: ≥0.95
• IP Rating: IP67
• Dimmable: No
• Cooling: Fanless
• Operating Temperature: -40°C to +60°C
• Dimensions: 169.4 × 61 × 34mm
• Surge Protection: 6kV line-to-line / 8kV line-to-ground
• Protection: Short circuit, over-current, over-voltage and over-temperature
• Warranty: 5 years
