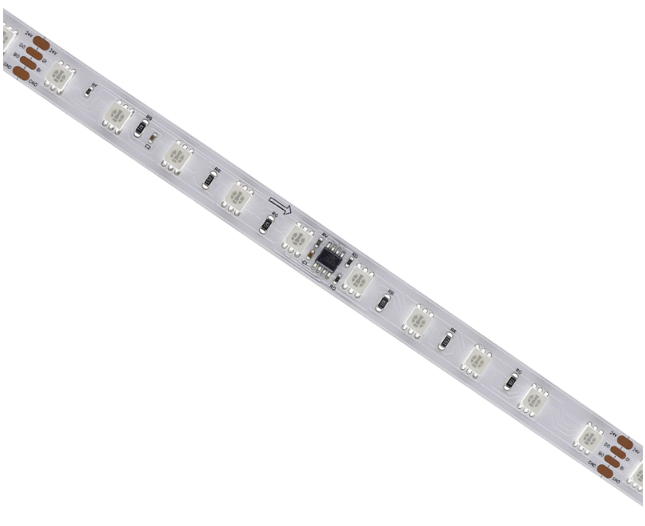

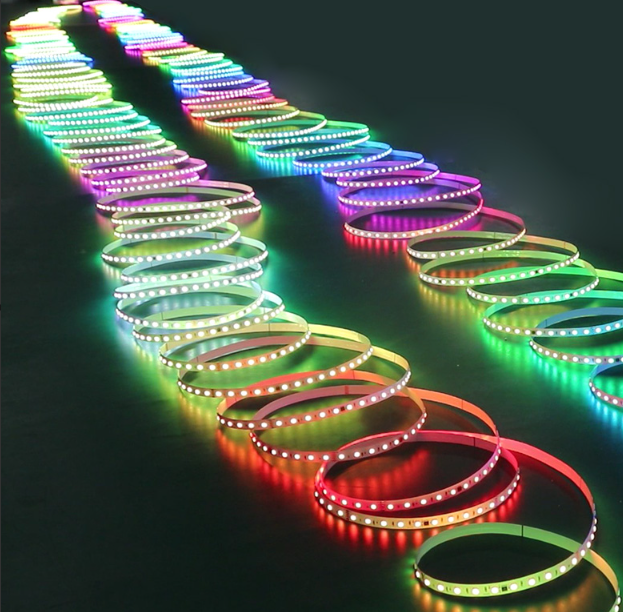

40M Ultra Long Addressable RGB LED Strip – TM1934 Pixel, Simplified Wiring

Ultra-long 40m addressable RGB strip with simplified wiring and lower controller demand for large-scale installations

Key Benefits

• Up to 40m continuous run – perfect for large-scale installations without breaking into multiple sections
• Reduced controller load (240 pixels total) – lowers system cost and simplifies setup
• Simplified wiring design – dual-end power reduces the need for complex injection points
• Stable 24V performance – consistent brightness and colour across long distances
• Dynamic pixel effects – create flowing, chasing, and programmable RGB lighting scenes

Ideal For

• Large architectural lighting projects
• Building outlines and facades
• Theatre aisles and event spaces
• Commercial corridors and long hallways
• Outdoor large-scale installations (IP68 option)

Technical Summary

• Voltage: 24V DC
• Power: 5–6W/m
• LED Type: SMD5050 RGB
• LED Density: 60 LEDs/m
• IC Type: TM1934 (external)
• Pixel Density: 6 pixels/m (240 pixels total)
• PCB Width: 12mm
• Length: 40m
• Control Signal: Addressable RGB (SPI)
• Cut Size: 166.6mm
• IP Ratings: IP20 / IP68
• Connectors: 3-pin JST-SM + 2-pin power
• Installation: Adhesive backing
